Percutaneous retrieval of a trapped intravascular ultrasonography catheter within an implanted stent: failure and success
-
Daeung Ohn, Yeon-Jik Choi, Junghoon Lee, Suk-Min Seo
- Received May 26, 2025; Revised June 21, 2025; Accepted June 24, 2025;
Case 1: Forcible withdrawal induced stent deformation, necessitating additional stenting.
Case 2: The cut-and-inserting wire technique facilitated atraumatic retrieval.
A 65-year-old male visited the emergency department and presented as anterior ST-elevation myocardial infarction (STEMI). Coronary angiography (CAG) showed severe stenosis (90%) in the proximal-to-mid segment of the left anterior descending artery as the culprit lesion. Despite severe tortuous the lesion, two drug-eluting stents (DES) (Synergy, 3.5 × 38 mm and 2.75 × 38 mm) were successfully implanted. Intravascular ultrasound (IVUS) was performed pre-optimization to assess stent apposition; however, catheter entrapment occurred at the proximal stent distal site during IVUS probe withdrawal. Forced extraction resulted in stent deformation with partial strut stripping, confirmed by repeat angiography. To address this complication, an additional stent (Synergy, 3.0 × 12 mm) was deployed (Fig. 1).A few days later, a 64-year-old male presented as inferolateral STEMI. CAG revealed thrombotic occlusion in the proximal left circumflex artery. Primary percutaneous coronary intervention was performed with DES (Synergy Megatron, 4.0 × 28 mm). During post-stent IVUS evaluation, catheter entrapment occurred at the stent’s distal edge upon withdrawal attempts. This time, the cut-and-inserting wire technique was employed: a guidewire was advanced through the empty space after removing optic fiber in an attempt to retrieve the trapped catheter (Fig. 2). This approach successfully extricated the device without stent displacement or vascular injury. Final angiography confirmed that coronary flow was restored with no residual stenosis.In both cases, catheter entrapment occurred at angulated stent segments within tortuous coronary anatomy during IVUS evaluation performed prior to post-dilation. The shared mechanism involved strut malapposition at bend points, where the IVUS catheter’s exit port became anchored between under-expanded struts. A critical divergence emerged in management:Catheter entrapment is a rare complication [1]. Major risk factors include stent under-expansion, tortuous anatomy, and small stent diameter [1]. Through these two cases, the importance of adequate post-dilation before IVUS assessment in PCI for small and tortuous lesions was underscored.Informed consent was obtained from patients.
- Notes
- Notes
-
CRedit authorship contributions Daeung Ohn: conceptualization, writing - original draft, writing - review & editing, visualization; Yeon-Jik Choi: writing - review & editing, supervision, project administration; Junghoon Lee: writing - original draft, writing - review & editing, supervision; Suk Min Seo: writing - review & editing, supervision
- Conflicts of Interest
- Conflicts of Interest
-
Conflicts of interest The authors disclose no conflicts.
- Notes
- Notes
-
Funding None
Figure 1

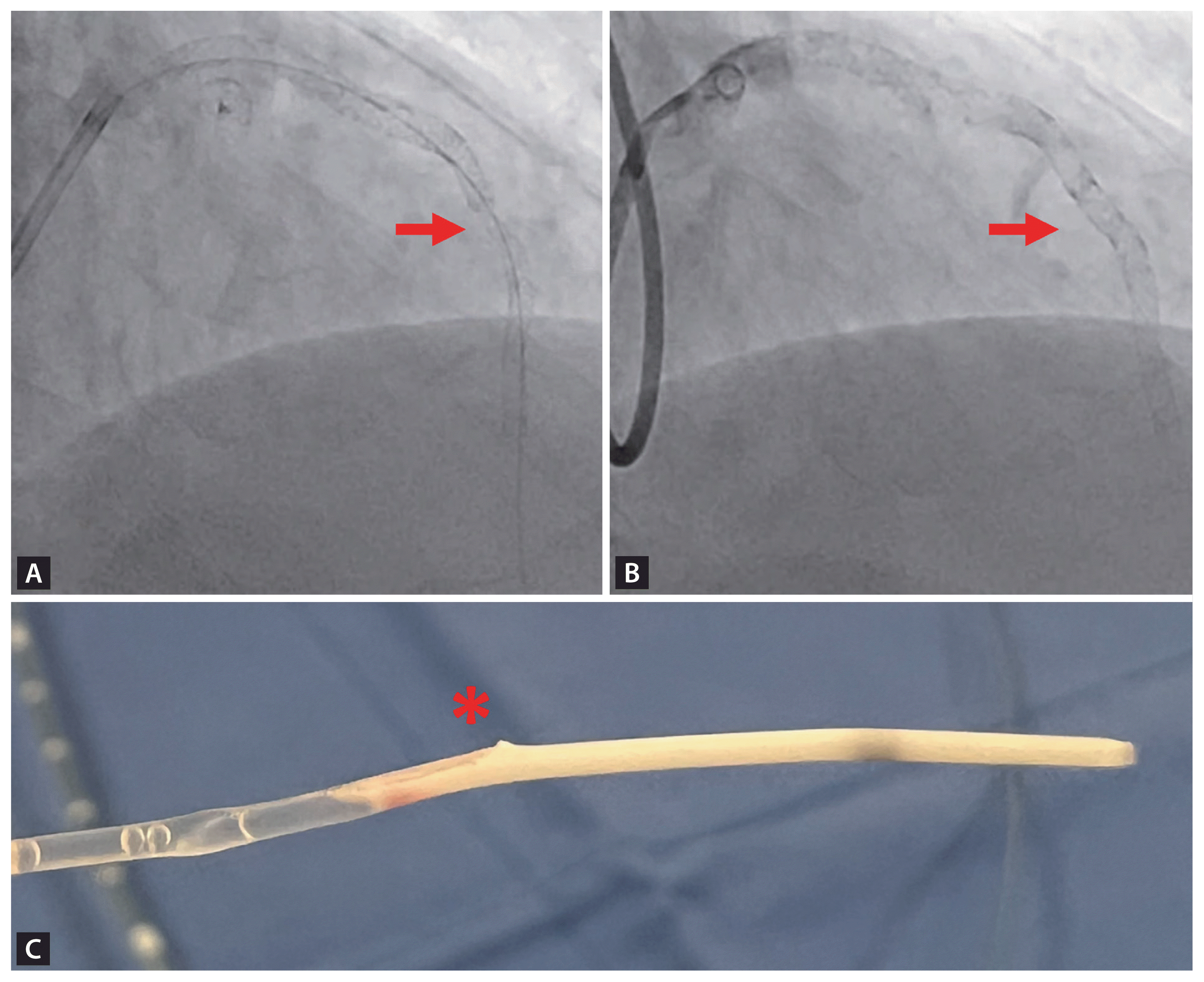

(A) After forcible withdrawal, fluoroscopy showing the deformity of stent strut (red arrow). (B) Additional stenting was performed to resolve the deformity (red arrow). (C) A widened wire exit opening of the catheter was identified (red asterisk). It became stuck in the bent stent strut, resulting in catheter entrapment.
Figure 2

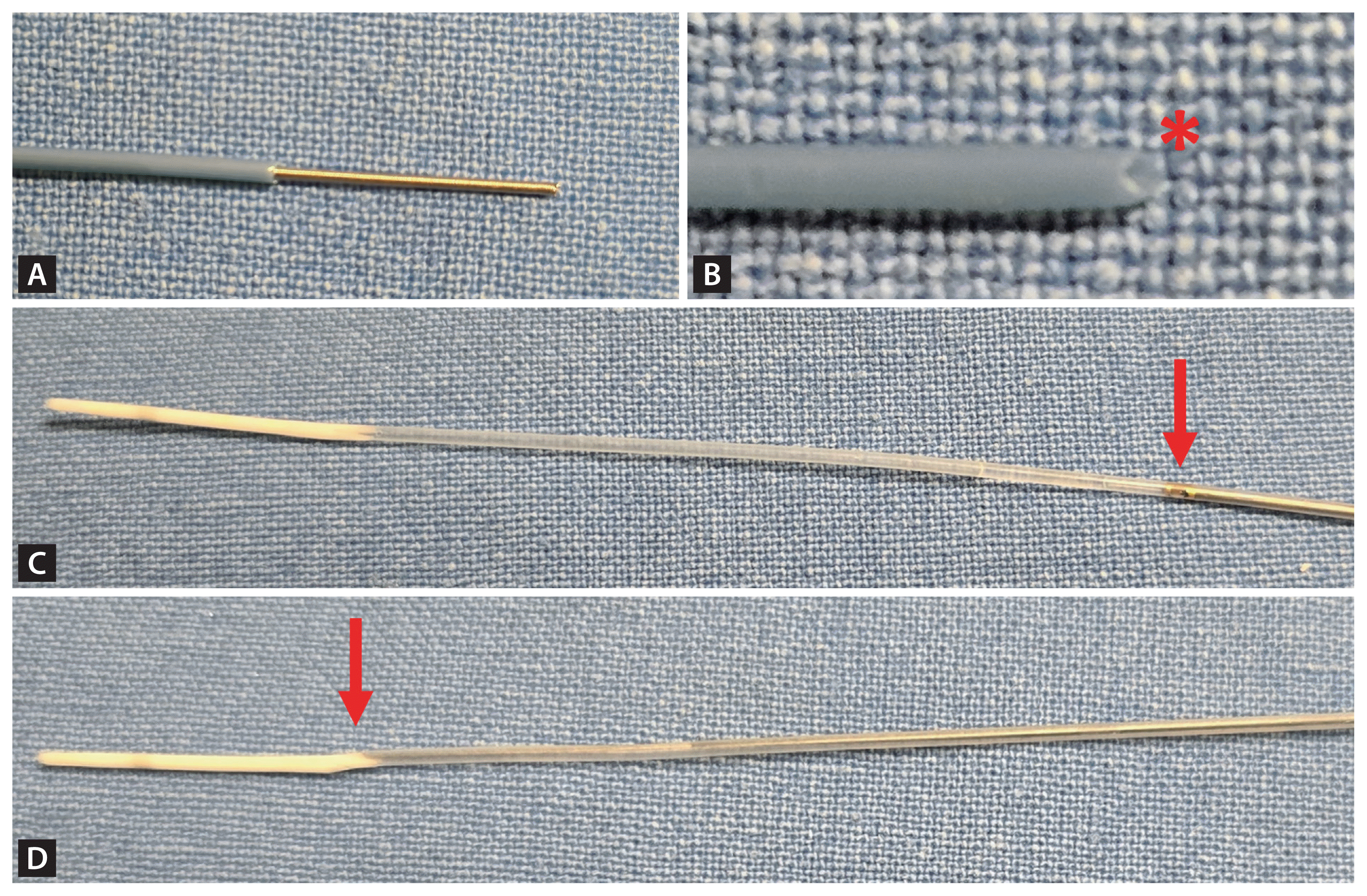

(A) The cross-section of catheter with optic fiber is shown. (B) An empty space was seen in distal cross-section of catheter after the optic fiber was removed (red asterisk). (C) Location of lens of optic fiber before its withdrawal (red arrow). (D) The back end of 0.014-inch guide wire was advanced through the empty space after removing optic fiber in an attempt to retrieve the trapped catheter (red arrow).
