The changes in cardiac dimensions and function in patients with end stage renal disease undergoing hemodialysis

Article information

Korean J Intern Med. 2002;17(2):107-113

doi : https://doi.org/10.3904/kjim.2002.17.2.107

Dong Won Lee, M.D., Yong Beom Kim, M.D., Seoung Jae An, M.D., Yoo Suck Jung, M.D., Ihm Soo Kwak, M.D., Yung Woo Shin, M.D., Ha Yeon Rha, M.D.

Department of Internal Medicine, Pusan National University College of Medicine, Pusan, Korea

Address reprint requests to : Ha Yeon Rha, M.D., Department of Internal Medicine, Pusan National University College of Medicine, 1-Ga 10, Seo-Gu, Pusan 602-739, Korea

Abstract

Background

It is absolutely necessary to evaluate cardiac function on starting and during hemodialysis in patients with end stage renal disease. In this study, we tried to determinate the changes of cardiac function associated with hemodialysis.

Methods

Twenty patients with end stage renal disease, who had been in a hemodialysis program from February, 1997 to August, 1999 in Pusan National University Hospital, were enrolled. They were examined with echocardiography and gated blood pool scintigraphy on starting hemodialysis and after follow-up. The data were analyzed by paired t-test.

Results

The patients were 46.2±16.8 years old and male to female ratio was 8:12. The underlying diseases were diabetes mellitus (n=10), hypertension¹⁾, glomerulonephritis²⁾ and others¹⁾. The duration of symptoms associated with end stage renal disease and underlying diseases was 3.4±2.6 years and the duration of hemodialysis was 13.8±7.0 months. The LVEDID, LVESID and RVC decreased significantly (−6. 10, −7.80 and −20.00%, respectively, p < 0.05) with no significant changes for LAD, IVS, PWT and EF (p > 0.05). In ten cases associated with diabetes, LVEDID decreased (−7.90%, p < 0.05). In twelve cases associated with cardiac diseases, LVEDID and LVESID decreased (−8.60 and −10.50%, respectively, p < 0.05). In four cases associated with diabetes without cardiac diseases, LAD decreased (−5.10%, p < 0.05) and in four cases associated with cardiac diseases without diabetes there were no significant changes in cardiac dimensions and EF. In seven cases associated with diabetes and cardiac diseases, LVEDID decreased (−10.50%, p < 0.05). The EF on gated blood pool scintigraphy decreased (−0.9%, p < 0.05) as a whole while it increased (5.90%, p <0.05) in the cases associated with diabetes and cardiac diseases.

Conclusion

During the early hemodialysis stage of end stage renal disease, we found a change of concentric left ventricular hypertrophy and relatively preserved left ventricular function. Furthermore, we can expect that adequate hemodialysis – with dry weight as low as possible – may prevent progression to eccentric left ventricular hypertrophy and dilated cardiomyopathy.

Keywords: End stage renal disease; Hemodialysis; Echocardiography; Cardiac function

INTRODUCTION

It is absolutely necessary to evaluate the cardiac function on starting and during hemodialysis in patients with end stage renal disease as it plays an important role in deciding the therapeutic procedures and judging the therapeutic effects. In this study, we tried to determinate the changes of cardiac function associated with hemodialysis. The average survival in patients with end stage renal disease is just one-third or one-fourth compared with one in normal people of similar age and it is often followed by such cardiac diseases as vessel disease, congestive heart failure, arrhythmia, myocardial infarction, pericarditis and cardiac arrest. Cardiac diseases before and after hemodialysis frequently occur and the mortality, thereby, is high. Therefore, the cardiac disease is an important prognosis for the death of patients with end stage renal disease. Especially, the classification by left ventricular dimensions and mass on echocardiography is a strong prognosis for death within 2 years from the start of hemodialysis. It is expected that echocardiography is used to observe changes in dimensions of each atrium and ventricle in order to preserve and enhance renal and heart functions through hemodialysis, which would decrease the mortality by the end stage renal disease and incidence of cardiac diseases.

This study used echocardiography and gated blood pool scintigraphy for the patients undergoing hemodialysis at Pusan National University Hospital to measure the changes in cardiac dimensions and ejection fraction before and after hemodialysis for comparison. In addition, it aimed to observe the changes of cardiac function according to hemodialysis with comparative analysis for the presence of risk factors like diabetes mellitus and hypertension.

MATERIALS AND METHODS

1. Patients

20 patients with end stage renal disease in the hemodialysis program of Pusan National University Hospital from February, 1997 to August, 1999 were tested.

2. Methods

The patients with end stage renal disease were evaluated for the cardiac function by echocardiography (SONOS 2500 of Hewlett Packard Co., 2-dimensional Echocardiography) before hemodialysis. After starting hemodialysis, echocardiography was repeated to measure left atrial dimension (LAD), left ventricular end diastolic internal dimension (LVEDID), left ventricular end systolic internal dimension (LVESID), interventricular septum thickness (IVS), right ventricular cavity(RVC), left ventricular post wall thickness (PWT) and ejection fraction (EF) for comparative analysis between the results before hemodialysis and during the follow-up. Also, gated blood pool scintigraphy using VERTEX (EPIC) gamma camera with dual detector of ADAC Co. was carried out as a subsidiary device for measuring ejection fraction. The dialyzer was AK-95 of B/brown Dialog, GSD 2000, Gambro Co. and Hemophan was used for the dialysis membrane.

3. Statistical method

Cardiac dimensions and ejection fraction before hemodialysis were calculated into mean±standard deviation. Each increase and decrease was expressed in percentage and paired t-test was used to evaluate the statistical significance.

RESULTS

Patients were 22–76 years old and the average age was 46.2±16.8. They were 8 males and 12 females. The underlying diseases of end-stage renal disease were diabetes mellitus (n=10), hypertension⁷⁾, glomerulonephritis²⁾ and others¹⁾. The cardiovascular complications associated with hemodialysis were hypertension (n=20), hypertensive heart disease⁷⁾, congestive heart failure⁷⁾, dilated cardiomyopathy⁴⁾, valvular heart disease²⁾ and ischemic heart disease¹⁾. The duration of symptoms associated with renal failure to starting hemodialysis was mean 3.4±2.6 years and the follow-up period after hemodialysis was mean 13.8±7.0 months (Table 1).

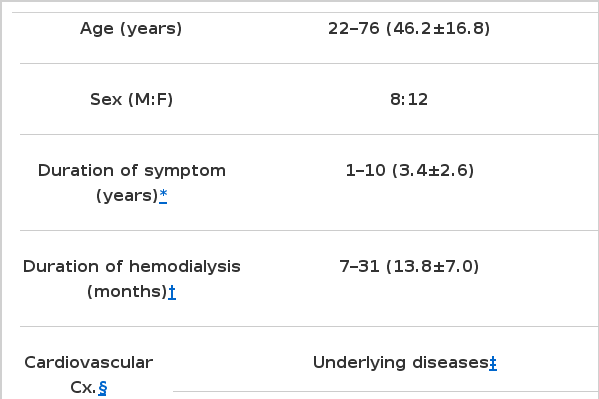

Table 1.

Clinical characteristics of hemodialysis patients who had echocardiography and gated blood pool scintigraphy

The results by echocardiography and gated blood pool scintigraphy at the start of hemodialysis and after follow-up were compared and analyzed (Table 2). As a result, LVEDID decreased from 5.51±0.48 cm to 5.17±0.59 cm, LVESID from 3.84±0.59 cm to 3.54±0.49 cm, RVC from 1.28±0.47 cm to 1.02±0.42 cm, which were statistically significant as −6.10,%, −7.80%, −20.00%, respectively (p<0.05). On the other hand, there were no significant changes in LAD, IVS, PWT, ET, which increased or decreased by 0.50%, −3.80%, −3.40%, −1.60%, respectively (p>0.05).

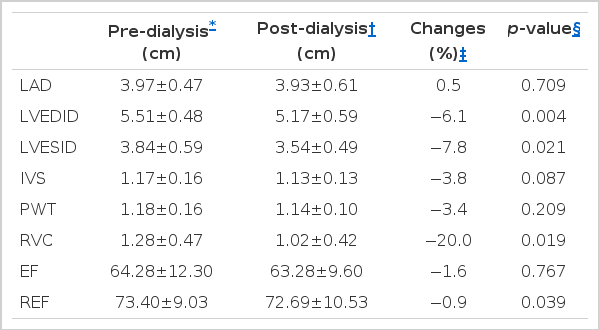

Table 2.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy

In Table 3, 10 diabetic cases showed a significant decrease of LVEDID (from 5.42±0.38 cm to 4.99±0.46 cm, −7.90%) in dimensions after dialysis (p<0.05), whereas there were no significant changes in LAD, LVEDIS, IVS, PWT, RVC, EF, which showed −1.80%, −7.60%, −4.20%, −5.60%, −14.30%, −1.30%, respectively (p>0.05). In 12 cardiac diseases like congestive heart failure, dilated cardiomyopathy, hypertensive heart disease, ischemic heart disease and cardiac valvular disease (Table 4), LVEDID significantly decreased from 5.73±0.43 cm to 5.24±0.74 cm (−8.60%) and LVESID from 4.08±0.62 cm to 3.65±0.54 cm (−10.50%) (p<0.05). However, there were no significant changes in LAD, IVS, PWT, RVC, EF (2.00%, −0.80%, −0.80%, −20.00%, −0.30%, respectively, p>0.05).

Table 3.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with diabetes mellitus

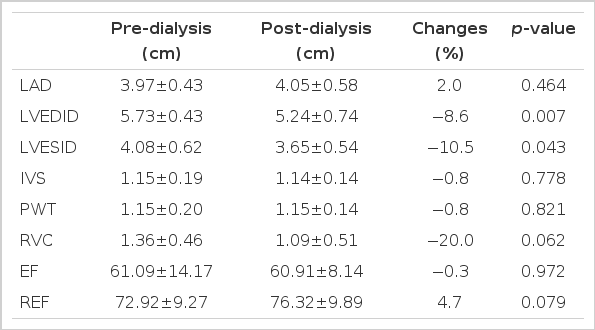

Table 4.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with heart diseases

In 4 cases associated with diabetic mellitus without cardiac diseases (Table 5), LAD significantly decreased from 3.90±0.37 cm to 3.70±0.39 cm by −5.10% (p<0.05), whereas there were no significant changes in 4 cases associated with cardiac diseases without diabetes mellitus (p<0.05).

Table 5.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with diabetes mellitus without heart diseases

In 7 cases associated with diabetes mellitus and cardiac diseases (Table 7), LVEDID showed a significant decrease of −10.50% from 5.57±0.39 cm to 4.98±0.58cm (p<0.05).

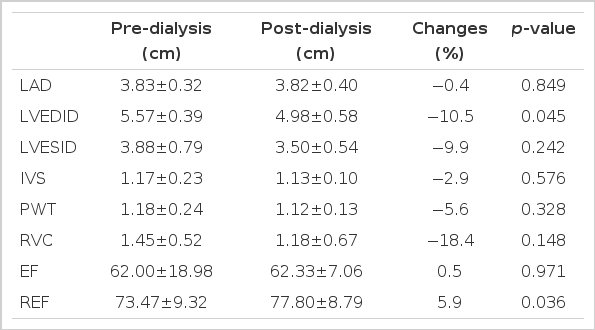

Table 7.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with heart diseases and diabetes mellitus

On the whole, a significant change in EF on echocardiography was not observed, but EF measured by gated blood pool scintigraphy (RVG) (hereafter as REF) showed a decrease of −0.90% from 73.40±9.03 cm to 72.69±10.53 cm (p<0.05). In cases of patients with diabetes mellitus and cardiac diseases, REF showed a significant increase of 5.90% from 77.47±9.30 cm to 77.80±8.79 cm (p<0.05, Table 2, 7)

DISCUSSION

The changes in cardiac dimensions and function by long-term hemodialysis in patients with end stage renal disease are important indices for an effective maintenance and improvement of renal and heart functions. Also, they are important prognoses for prevalence and mortality.

Jürgen et al. performed a follow-up of changes in cardiac dimensions by M-mode echocardiography for 2.5 years in chronic renal failure patients undergoing a long-term hemodialysis therapy. As a result, LAD (38.26±5.42 vs. 42.52±6.27 mm) and IVS (14.34±3.02 vs. 16.44±3.38 mm) showed statistically significant increases, but LVESID (35.80±60.4 vs. 34.31±6.42 mm) showed a significant decrease. No significant changes were observed in LVEDID and stroke volume. The cause of LAD increase is not certain, but if is assumed that it is attributed to left ventricular diastolic failure by left ventricular hypertrophy. LVEDID and LVESID decreases are related to preload and afterload, which indicates decreases in dimensions by the concentric left ventricular hypertrophy.

Deligiannis et al. performed a follow-up in 10 patients with end stage renal disease for 22 months and observed increases in LVEDID from 52±3.0 to 54±3.0 mm and IVS from 12±2.0 to 13±2.0 mm, which showed an eccentric left ventricular hypertrophy finding.

Left ventricular hypertrophy by end stage renal disease is a process of adapting to myocardial load increase, in which pressure overload causes left ventricular wall thickening and induces concentric left ventricular hypertrophy by reducing cavity volume, whereas volume overload increases the internal dimension with left ventricular wall thickness to cause the eccentric left ventricular hypertrophy. In the state of such chronic overloads, left ventricular hypertrophy and fibrosis proceed continuously to yield dilated cardiomyopathy and heart failure. Therefore, in case of left ventricular hypertrophy by end stage renal disease, the left ventricular internal dimension decreases in the early stage and increases gradually, of which change is more accelerated with inadequate hemodialysis. As the blood flow volume is directly related to the left ventricular diameter, it is said that the left ventricular diastole may be prevented if the dry weight is maintained as low as possible. Also in the patients with end-stage renal disease, hemodialysis through arteriovenous shunt induces higher blood flow volume, which causes left ventricular hypertrophy and dilatation

This study tested patients of mean 46.2±16.8 years of age with end stage renal disease in the early stage of hemodialysis therapy, of which average duration was 13.8±7.0 months. It is judged that decreases in LVEDID and LVESID are attributed to the decreased finding of the left ventricular internal diameter by concentric left ventricular hypertrophy. No change in left atrial volume reflects a mild left ventricular diastolic failure by left ventricular hypertrophy.

Hypertension is an independent determinant causing concentric left ventricular hypertrophy. There were 7 hypertensive end stage renal disease patients in this study and every subject had hypertension as an underlying disease or a complication, which was being controlled by calcium-channel blocker, β-adrenergic blocker and angiotensin converting enzyme inhibitors.

As compared with diabetes mellitus as another risk factor for cardiac diseases, as well as a main cause of chronic renal failure, a complicated cases with diabetes mellitus and cardiac diseases of 10 diabetic end stage renal patients showed a volume decrease of −10.5% in LVEDID, which assumed that the concentric left ventricular hypertrophy proceeded most among the other cases. In case of diabetes mellitus without cardiac disease or cardiac disease without diabetes mellitus, LVEDID decreased 9.5% and 3.7%, respectively and it is judged that no statistical significances are attributed to few patients and a relatively short prevalence or hemodialysis period.

Gated blood pool scintigraphy is useful to evaluate the left ventricular function by radionuclide venoclysis for equilibrium in blood and then for collecting electrocardiograms repeatedly during the heart beat cycle to image the changes of blood pool within the heart. With echocardiography, the gated blood pool scintigraphy was used to assay the left ventricular function quantitatively in measuring the ejection fraction. This study displayed a difference in measuring the ejection fraction by echocardiography and gated blood pool scintigraphy, which assumed that it is due to each method using left ventricular volume or radioactive value during the cardiac cycle to yield some differences in measurement and accuracy.

Finally, end stage renal disease patients in the early stage of hemodialysis showed the concentric left ventricular hypertrophy finding, whereas the left ventricular function was relatively well maintained. It is considered that adequate hemodialysis, preserving dry weight as low as possible, may prevent progression to eccentric left ventricular hypertrophy and dilated cardiomyopathy. Also, it is expected to reduce death due to heart failure and ischemic heart disease caused by left ventricular hypertrophy and dilated cardiomyopathy. A long-term follow-up should be required for mortality and prognosis according to changes in cardiac function and a long-term study should also be required for risk factors of cardiac diseases like hypertension and diabetes mellitus.

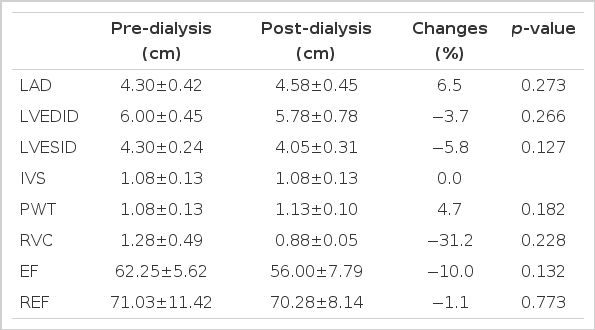

Table 6.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with heart diseases without diabetes mellitus

References

1. U.S Renal Data System. Patient mortality and survival. Am J Kidney Dis 28:S79–S92. 1996;

2. U.S Renal Data System. Hospitalization. Am J Kidney Dis 28:S114–S126. 1996;

3. U.S Renal Data System. Comorbid conditions and correlations with mortality risk among 3,399 incident hemodialysis patients. Am J Kidney Dis 20:32–38. 1992;

4. Foley RN, Parfrey PS, Harnett JD. Clinical and echocardiographic disease in patients starting end-stage renal disease therapy. Kidney Int 47:186–192. 1995;

5. Annual Report 1996, Volume 1. Dialysis and Renal Transplantation, Canadian Organ Replacement Register Canadian Institute for Health Information. Ontario, Don mills: March. 1996.

6. Harnett JD, Foley RN, Kent GM. Congestive heart failure in dialysis patients: Prevalence, incidence, prognosis and risk factors. Kidney Dis 19:884–890. 1995;

7. Parfrey PS, Foley RN, Harnett JD, Kent GM, Murray DC, Barre PE. Outcome and risk factors of ischemic heart disease in chronic uremia. Kidney Int 49:1428–1434. 1996;

8. Parfrey PS, Foley RN, Harnett JD, Kent GM, Murray DC, Barre PE. Outcome and risk factors for left ventricular disorders in chronic uremia. Nephrol Dial Transplant 11:1277–1285. 1996;

9. Silberberg JS, Barre PE, Prichard SS, Sniderman AD. Impact of left ventricular hypertrophy on survival in end-stage renal disease. Kidney Int 36:286–290. 1989;

10. Jürgen H, Wilfried K, Georg S, Volker W. Analysis of left ventricular changes associated with chronic hemodialysis. Nephron 49:284–290. 1988;

11. Grossmann R, Albert FW. Echokardiographische Betunde bei terminal niereninsuffizienten patienten unter chronisch intermittierender Dialysebe- handlung. NierenHochdruc kkrankh 13:410–414. 1984;

12. Lai KN, Ng J, Whitford J, Buttfield I, Fassett RG, Methew TH. Left ventricular function in uremia : echocardiographic and radionuclide assessment in patients on maintenance hemodialysis. Clin Nephrol 23:125–133. 1985;

13. Renger A, Müller M, Jutzler GA, Bette L. Echocardiographic evaluation of left ventricular dimensions and function in chronic hemodialysis patients with cardiomegaly. Clin Nephrol 21:164–168. 1978;

14. Stegaru-Hellring B, Buss J, Strauch M. Urämische Kardiomyopathie. Echokardiographische Untersuchungen der linksventrikulären Dynamic. Nie- renHochdruckkrankh 13:396–400. 1984;

15. Deligiannis A, Paschalidou E, Sakellariou G, Vargemezis V, Geleris P, Kontopoulos A, Papadimitriou M. Changes in left ventricular anatomy during hemodialysis, continuous ambulatory peritoneal dialysis and after renal transplantation. Proc EDTA-ERA 21:185–189. 1984;

16. Katz AM. Cardiomyopathy of overload: A major determinant of prognosis in congestive heart failure. N Engl J Med 322:100–110. 1990;

17. London GM, Parfrey PS. Cardiac disease in chronic uremia: Pathogenesis. Advances in Renal Replacement Therapy 4:194–211. 1997;

18. Chaignon M, Chen WT, Tarazi RC, Bravo EL, Nakamoto S. Effect of hemodialysis on blood volume distribution and cardiac output. Hypertension 3:327–332. 1981;

19. London GM, Marchais SJ, Guerin AP, Pannier B, Safar ME, Day M, Metivier F. Cardiac hypertrophy and arterial alterations in end-stage renal disease: Hemodynamic factors. Kidney Int 43:S42–S49. 1993;(suppl 41).

20. Foley RN, Parfrey PS, Harnett JD, Kent GM, Murray DC, Barre PE. Impact of hypertension on cardiomyopathy, morbidity and mortality in end- stage renal disease. Kidney Int 49:1379–1385. 1996;

Article information Continued

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted noncommercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Table 1.

Clinical characteristics of hemodialysis patients who had echocardiography and gated blood pool scintigraphy

Age (years)		22–76 (46.2±16.8)

Sex (M:F)		8:12

Duration of symptom (years)*		1–10 (3.4±2.6)

Duration of hemodialysis (months)†		7–31 (13.8±7.0)

Cardiovascular Cx.§	Underlying diseases‡
Cardiovascular Cx.§	Diabetic (n=10)	Hypertensive (n=7)	Glomerulonephritic (n=2)	Others (n=1)
HT	10	7	2	1
CHH	3	4	0	0
CHF	2	5	0	0
DCMP	1	3	0	0
VHD	1	1	0	0
IHD	1	0	0	0

Period from referral due to associated diseases or uremic symptom to starting hemodialysis

^†

Period from starting hemodialysis to Aug, 1999

^‡

Underlying diseases causing CRF: diabetic, hypertensive, glomerulonephritic and others

^§

Cardiovascular complications associated with the underlying diseases and CRF HT, hypertension; CHH, chronic hypertensive heart; CHF, congestive heart failure; DCMP, dilated cardiomyopathy; VHD, valvular heart diseases; IHD, ischemic heart diseases

Table 2.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy

	Pre-dialysis^* (cm)	Post-dialysis† (cm)	Changes (%)‡	p-value§
LAD	3.97±0.47	3.93±0.61	0.5	0.709
LVEDID	5.51±0.48	5.17±0.59	−6.1	0.004
LVESID	3.84±0.59	3.54±0.49	−7.8	0.021
IVS	1.17±0.16	1.13±0.13	−3.8	0.087
PWT	1.18±0.16	1.14±0.10	−3.4	0.209
RVC	1.28±0.47	1.02±0.42	−20.0	0.019
EF	64.28±12.30	63.28±9.60	−1.6	0.767
REF	73.40±9.03	72.69±10.53	−0.9	0.039

LAD, Left atrial dimension; LVEDID, Left ventricular end-diastolic internal dimension; LVESID, Left ventricular end-systolic internal dimension; IVS, Interventricular septum thickness; PWT, Left ventricular posterior wall thickness; RVC, Right ventricular cavity; EF, Ejection fraction; REF, Ejection fraction on gated blood pool scintigraphy (RVG)

measurements at starting hemodialysis

^†

measurements after follow-up

^‡

difference between measurements of pre- & post-dialysis

^§

statistically significant when p<0.05

Table 3.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with diabetes mellitus

	Pre-dialysis (cm)	Post-dialysis (cm)	Changes (%)	p-value
LAD	3.90±0.31	3.38±0.34	−1.8	0.299
LVEDID	5.42±0.38	4.99±0.46	−7.9	0.027
LVESID	3.68±0.70	3.40±0.48	−7.6	0.193
IVS	1.18±0.19	1.13±0.10	−4.2	0.272
PWT	1.19±0.20	1.12±0.11	−5.6	0.141
RVC	1.26±0.54	1.08±0.58	−14.3	0.149
EF	66.00±16.22	65.11±7.52	−1.3	0.881
REF	74.28±8.12	73.18±10.37	−1.0	0.722

Table 4.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with heart diseases

	Pre-dialysis (cm)	Post-dialysis (cm)	Changes (%)	p-value
LAD	3.97±0.43	4.05±0.58	2.0	0.464
LVEDID	5.73±0.43	5.24±0.74	−8.6	0.007
LVESID	4.08±0.62	3.65±0.54	−10.5	0.043
IVS	1.15±0.19	1.14±0.14	−0.8	0.778
PWT	1.15±0.20	1.15±0.14	−0.8	0.821
RVC	1.36±0.46	1.09±0.51	−20.0	0.062
EF	61.09±14.17	60.91±8.14	−0.3	0.972
REF	72.92±9.27	76.32±9.89	4.7	0.079

Table 5.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with diabetes mellitus without heart diseases

	Pre-dialysis (cm)	Post-dialysis (cm)	Changes (%)	p-value
LAD	3.90±0.37	3.70±0.39	−5.1	0.016
LVEDID	5.25±0.24	4.75±0.50	−9.5	0.267
LVESID	3.60±0.68	3.13±0.29	−13.2	0.334
IVS	1.18±0.10	1.13±0.10	−4.3	0.182
PWT	1.18±0.10	1.13±0.05	−4.3	0.182
RVC	0.95±0.37	0.83±0.26	−12.6	0.412
EF	66.50±15.15	67.25±8.26	1.1	0.892
REF	78.60±7.51	70.23±13.72	−10.6	0.130

Table 6.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with heart diseases without diabetes mellitus

	Pre-dialysis (cm)	Post-dialysis (cm)	Changes (%)	p-value
LAD	4.30±0.42	4.58±0.45	6.5	0.273
LVEDID	6.00±0.45	5.78±0.78	−3.7	0.266
LVESID	4.30±0.24	4.05±0.31	−5.8	0.127
IVS	1.08±0.13	1.08±0.13	0.0
PWT	1.08±0.13	1.13±0.10	4.7	0.182
RVC	1.28±0.49	0.88±0.05	−31.2	0.228
EF	62.25±5.62	56.00±7.79	−10.0	0.132
REF	71.03±11.42	70.28±8.14	−1.1	0.773

Table 7.

The changes in cardiac dimensions and ejection fraction on echocardiography and gated blood pool scintigraphy in patients with heart diseases and diabetes mellitus

	Pre-dialysis (cm)	Post-dialysis (cm)	Changes (%)	p-value
LAD	3.83±0.32	3.82±0.40	−0.4	0.849
LVEDID	5.57±0.39	4.98±0.58	−10.5	0.045
LVESID	3.88±0.79	3.50±0.54	−9.9	0.242
IVS	1.17±0.23	1.13±0.10	−2.9	0.576
PWT	1.18±0.24	1.12±0.13	−5.6	0.328
RVC	1.45±0.52	1.18±0.67	−18.4	0.148
EF	62.00±18.98	62.33±7.06	0.5	0.971
REF	73.47±9.32	77.80±8.79	5.9	0.036
