Endoscopic ultrasound-guided fine-needle aspiration of parathyroid adenoma in a patient with hypercalcemia and ureter stone

Article information

Korean J Intern Med. 2021;36(3):746-747

Publication date (electronic) : 2020 August 10

doi : https://doi.org/10.3904/kjim.2020.268

Kwangwoo Nam¹, Sungwook Jang¹, Sung Hyeok Ryou¹, Kyungjun Kim¹, Yong-Moon Lee²

¹Department of Internal Medicine, Dankook University Hospital, Cheonan, Korea

²Department of Pathology, Dankook University Hospital, Cheonan, Korea

Correspondence to Kwangwoo Nam, M.D. Tel: +82-41-550-3092 Fax: +82-41-550-7050 E-mail: nambag1108@gmail.com

Received 2020 June 2; Revised 2020 June 8; Accepted 2020 June 8.

A 61-year-old man visited our hospital with lower abdominal pain. He had a history of a ureter stone and had underwent ureteroscopic stone removal 1 month previously. Colonoscopy and abdominopelvic computed tomography showed prominent wall thickening with significant stricture in the sigmoid colon. Repeated forceps biopsies showed no malignant cells. As the possibility of submucosal infiltrating type cancer could not be excluded, surgical resection was considered. However, laboratory tests showed hypercalcemia (11.5 mg/dL), elevated ionized calcium (1.40 mmol/L), and elevated intact parathyroid hormone (PTH) levels (97.1 pg/mL). Due to the suspicion of primary parathyroidism, chest computed tomography was performed; it revealed a 3-cm-sized highly enhanced mass in the right upper tracheal area (Fig. 1A). Neck ultrasound-guided fine-needle aspiration (US-FNA) failed to target this mass; hence, endoscopic ultrasound-guided fine-needle aspiration (EUS-FNA) was performed. In the upper esophagus, 22 cm from the upper incisor, EUS showed a 2.6 × 1.8-cm-sized heterogenous hypoechoic mass with a focal anechoic cystic lesion (Fig. 1B). Using a 22-gauge needle, EUS-FNA was performed without immediate complications, revealing several epithelial cell clusters without nuclear atypia, suggestive of parathyroid adenoma (H&E, ×400) (Fig. 2A). ^99mTechnetium methoxyisobutylisonitrile (MIBI) single-photon emission computed tomography (SPECT) showed delayed washout at the postero-inferior aspect of the lower pole of the right thyroid lobe. Following treatment of hypercalcemia with hydration, he successfully underwent left hemicolectomy, which revealed an organizing abscess and diverticulitis without evidence of malignancy. The patient then underwent right parathyroidectomy, with final diagnosis of parathyroid adenoma (H&E, ×400) (Fig. 2B). His serum calcium and intact PTH levels were normalized after surgery. Informed consent was obtained from the patient.

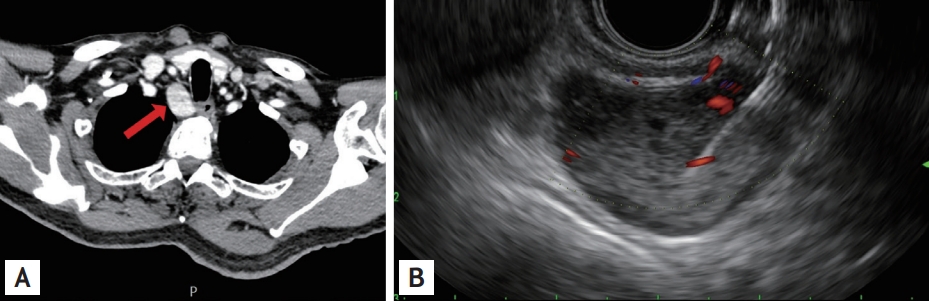

Figure 1.

(A) Chest computed tomography revealed 3 cm sized oval shaped well-enhancing mass in the right upper tracheal area (arrow). (B) Endoscopic ultrasound-guided fine-needle aspiration was performed to confirm the diagnosis.

Figure 2.

Histopathologic examination revealed parathyroid adenoma. (A) Endoscopic ultrasound-guided fine-needle aspiration cytology (H&E, ×400). (B) surgical parathyroidectomy specimen (H&E, ×400).

Parathyroid adenoma is a common cause of hypercalcemia and primary hyperparathyroidism. In cases of deeply situated parathyroid adenomas, US-FNA may fail to target the lesion. In this case, EUS-FNA is a safe and feasible alternative for the diagnosis of ectopic parathyroid adenoma.
