Comparison of calcium-channel blockers for long-term clinical outcomes in patients with vasospastic angina

Article information

Korean J Intern Med. 2021;36(1):124-134

Publication date (electronic) : 2020 February 24

doi : https://doi.org/10.3904/kjim.2019.308

Sung Eun Kim¹, Sang-Ho Jo², Seung Hwan Han³, Kwan Yong Lee⁴, Sung Ho Her⁵, Min-Ho Lee⁶, Won-Woo Seo¹, Seong-Sik Cho⁷, Sang Hong Baek⁸

¹Department of Cardiovascular Medicine, Hallym University Kangdong Sacred Heart Hospital, Seoul, Korea

²Division of Cardiology, Department of Internal Medicine, Hallym University Sacred Heart Hospital, Anyang, Korea

³Department of Cardiovascular Medicine, Gachon University Gil Medical Center, Incheon, Korea

⁴Department of Cardiovascular Medicine, Incheon St. Mary’s Hospital, College of Medicine, The Catholic University of Korea, Incheon, Korea

⁵Department of Cardiovascular Medicine, Daejeon St. Mary’s Hospital, College of Medicine, The Catholic University of Korea, Daejeon, Korea

⁶Department of Cardiovascular Medicine, Soonchunhyang University Seoul Hospital, Seoul, Korea

⁷Department of Epidemiology and Occupational Medicine, Dong-A University College of Medicine, Busan, Korea

⁸Department of Cardiovascular Medicine, Seoul St. Mary’s Hospital, College of Medicine, The Catholic University of Korea, Seoul, Korea

Correspondence to Sang-Ho Jo, M.D. Division of Cardiology, Department of Internal Medicine, Hallym University Sacred Heart Hospital, 22 Gwanpyeong-ro 170beon-gil, Dongan-gu, Anyang 14068, Korea Tel: +82-31-380-3722, Fax: +82-31-386-2269, E-mail: sophi5neo@gmail.com

Received 2019 September 16; Revised 2019 November 10; Accepted 2019 December 19.

Abstract

INTRODUCTION

Vasospastic angina (VA) is highly prevalent in Korea and Japan [1-4]. Although patients with VA are known to have favorable long-term prognosis [5], critical patients who present with acute coronary syndrome (ACS) and cardiac arrest have been reported [6,7]. Therefore some investigators argue that the prognosis of VA is varied and the treatment ought to be more refined and tailored to match a patients specific needs [8].

Calcium channel blockers (CCBs) are usually prescribed to VA patients in an effort to prevent angina attacks with coronary vasospasm, and reduce the occurrence of accompanying sudden cardiovascular death and other cardiac events [4,9,10]. The first generation of CCBs like nifedipine, verapamil and diltiazem, which were introduced in 1980s, have been validated for the control of angina in patients with VA [11-13]. The new generation of CCBs including amlodipine, nicardipine, and benidipine were validated in 1990s [14,15]. However, few studies have compared the prognostic and symptom relieving effects of first and second generation CCBs.

In the present study, we compared the long-term clinical outcomes and angina relieving properties of CCBs in patients with VA confirmed by coronary angiography (CAG) and an ergonovine (EG) provocation test from a large prospective multicenter cohort in Korea.

METHODS

The variant angina-Korea (VA-Korea) registry, which is a nation-wide prospective multicenter registry, enrolled patients with chest pain indicative of VA who had received CAG and an EG provocation test. Adults aged 18 or over were considered for enrollment in the study. Patients who had a normal or minimal (< 50% luminal diameter narrowing) coronary atherosclerotic stenosis at the baseline in CAG could be registered. Patients with malignancy, end stage renal disease requiring dialysis, inflammatory disease, or catheter-induce spasm at baseline CAG were excluded from the study.

The study protocol was approved by the Institutional Review Board of each participating hospital (Hallym IRB No. 2010-I007) and all patients gave written informed consent. All procedures performed in the studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee, and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards.

A total of 2,960 patients were registered consecutively from May 2010 to June 2015 in 11 tertiary hospitals in Korea with high volume CAG and percutaneous coronary intervention procedures. Among them, 1,892 patients were judged to have positive (definite, 680) and intermediate (1,212) results in their provocation tests. Fifty-four patients were lost in the follow-up; thus, finally 1,838 patients with follow-up data were further investigated. Among them, 1,586 patients were prescribed representative CCBs including diltiazem, nifedipine, amlodipine, and benidipine.

Patients with positive results in the EG provocation test and with a spontaneous spasm received medical treatments including CCBs and other vasodilators during the follow-up. The grade of angina was evaluated at 1-month, 1-, 2-, and 3-year follow-up period. Patients were divided into two groups: the patients treated with the 1st generation CCBs (diltiazem, nifedipine users) and patients treated with the 2nd generation CCBs (amlodipine and benidipine). We followed up the clinical events recorded in the study participants for 3 years.

The primary endpoint is the composite of death from any cause, ACS, and a new-onset of symptomatic arrhythmia during the 3-year follow-up. ACS was defined as a recurrent or continuous ischemic chest pain lasting more than 20 minutes with ischemic symptoms detected by electrocardiographic (ECG) changes and/or elevation of cardiac markers including myocardial infarction (MI). The ischemic ECG changes used as markers of ischemia were an elevation of the ST of 0.1 mV or more, a depression of the ST of 0.1 mV or more, a T-wave inversion, or the occurrence of a left bundle branch block recorded in at least two contiguous leads on the 12-lead ECG. We defined a new-onset symptomatic arrhythmia as the first occurrence of either atrial or ventricular tachycardia/fibrillation, symptomatic premature beats, sick-sinus rhythm, or atrioventricular block. The ECG was routinely checked during the regular follow-up and emergent visits to the out-patient clinic or emergency department of the hospital. Holter monitoring for the first 24-hour was performed in patients with suspected arrhythmic symptoms. The frequency of angina after discharge was presented according to the prior classification; grade I: near-daily attacks; II: ≥ 4 attacks/month; III: ≥ 1 but < 4 attacks/month; and IV: < 1 attack/month [16].

Emergency room revisits due to the occurrence of the primary endpoint or of any discomfort were reported as soon as possible. Individual adverse events were analyzed as a secondary endpoint. All the adverse events of interest were confirmed through source document review, including the medical records as well as telephone interviews, and were adjudicated by the Local Events Committee of Seoul St. Mary’s Hospital. All the patients received baseline CAG by routine methods after the cessation of vasoactive drugs like CCBs and nitrate for 48 hours prior to the CAG. All participating hospitals used the same protocol of EG provocation like EG administration route and serial doses.

After the physicians’ confirmed that there was no significant atherosclerotic coronary narrowing from baseline CAG, the EG provocation test was performed starting with the right coronary artery (RCA). If the RCA was intact, the left coronary artery (LCA) was tested. The EG was mixed with saline and administered by an intracoronary (IC) bolus injection over a 2 to 3 minutes. If no narrowing was found after the 1st dose of EG on the RCA angiogram, the dose was escalated from 10 (E1) to 20 (E2) and 40 μg (E3) sequentially. CAG was performed 1 to 2 minutes after the completion of the EG injection in the same projection compared to the vessel diameter of the baseline RCA.

If a coronary spasm was not provoked after testing the RCA, an EG provocation on left anterior descending artery followed with incremental doses of 20 (E1), 40 (E2), and 60 μg (E3) in the same manner. Once spasm was provoked, IC nitroglycerine of 200 μg bolus was injected.

After the provocation test, irrespective of the test result, IC nitrate (200 μg) was injected and the response was observed. We followed the provocation methods from the Japanese Circulation Society guideline for the diagnosis and treatment of patients with VA.

The CAG result was analyzed by investigating all the segments of each inter coronary artery. The angiographic findings were analyzed on-line or off-line by a dedicated quantitative CAG program (Syngo X Workplace version VA60C from syngo QCA system, Siemens AG, Munich, Germany) or through manual assessment by the investigators in each hospital who were not involved in the study. In addition, investigators in the core laboratory of Seoul St. Mary’s Hospital in South Korea, confirmed in blinded angiographic data off-line by visual assessment. Meaningful atherosclerosis in each coronary artery was defined as a luminal diameter narrowing of ≥ 50%.

Definite (positive) VA was defined as a total (100%) or subtotal (> 90% luminal diameter narrowing) occlusion of the index coronary artery accompanied with ischemic symptoms and/or ECG changes. An ischemic ECG change was defined as an ST segment elevation or depression of > 0.1 mV or a negative U-wave in at least two contiguous leads [16]. An intermediate result was defined as patients with 50% to 90% luminal narrowing with or without ischemic symptoms and/or ECG changes. We define negative results as both an LCA and RCA EG provocation test with < 50% luminal narrowing without ischemic symptoms or ECG changes. Besides the overall statistical analysis, we made an additional analysis in patients with definite spasm. Continuous variables were expressed as the mean and standard deviation, and mean differences between groups were estimated by the analysis of variance (ANOVA). Categorical variables were demonstrated with the absolute number and with percentages. Each incidence rate and 95% confidence interval (CI) was demonstrated according to the CCB treatment. The event rate per 1,000 person month was displayed for estimating the incidence rate of the primary endpoint, ACS, arrhythmia, and all cause death, and Kaplan-Meier curves were presented to estimate the survival. The log-rank test was conducted to compare the survival among the different groups. In addition, the Cox proportional hazard regressions were conducted to estimate the survival difference among groups using the hazard ratio (HR) with a 95% CI. Schoenfeld’s partial residuals were utilized to test for proportionality. Subgroup analysis was conducted to compare the incidence of the primary outcomes across different clinical conditions that may influence the prognosis, and an interaction analysis was conducted to examine the heterogeneity. Ordered logistic regression analysis was employed for comparing the severity of angina symptoms between the different CCBs. A p value of < 0.05, was considered statistically significant. Statistical analysis was carried out using Stata version 13.1 (Stata Corp., College station, TX, USA).

RESULTS

We enrolled 2,960 patients from 11 hospitals in Korea. Among them, 1,838 patients experienced definite/intermediate spasm, 1,675 received CCBs (90.2%), and 1,586 patients were prescribed with one of the four major CCBs—diltiazem, nifedipine, amlodipine, and benidipine. These patients entered the final analysis.

The mean follow-up period was 22.63 ± 16.21 months (median, 23.90 [interquartile range, 9.56 to 23.90]). We divided the patients into two groups, patients receiving the 1st generation CCBs (diltiazem and nifedipine) and patients receiving the 2nd generation CCBs (amlodipine and benidipine).

The baseline characteristics of the patients are shown in Table 1. The mean age ranged from 53.7 to 57 years. Diltiazem was the most widely prescribed drug (79.0%) followed by amlodipine (11.1%), nifedipine (5.8%), and benidipine (4.1%) (Supplementary Table 1). The male sex and CHD history were more common in the patients prescribed with 2nd generation CCBs (Table 1).

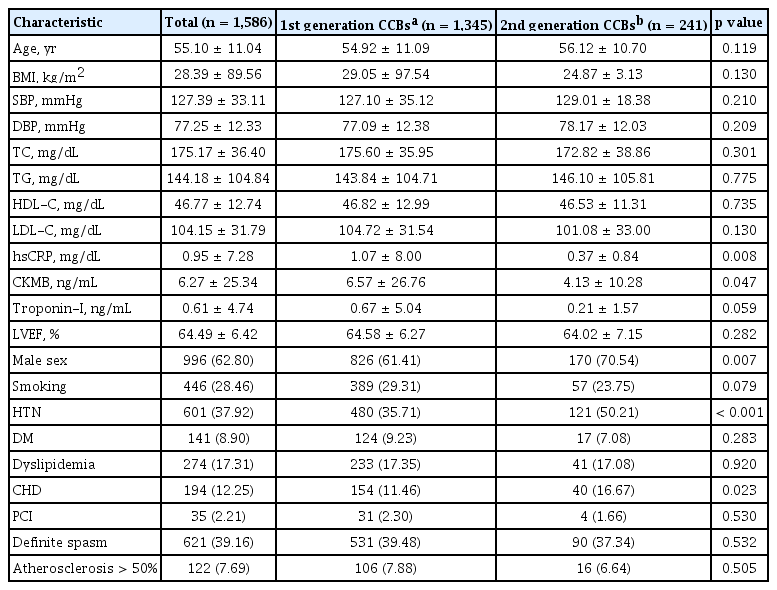

Table 1.

Demographic and clinical characteristics of study participants

Comparison of the 1st and 2nd generation CCBs

We compared the primary outcome defined as t he composite of total death, ACS, and new-onset symptomatic arrhythmia, between the 1st generation CCB group (diltiazem and nifedipine, n = 1,345) and the 2nd generation CCB group (amlodipine and benidipine, n = 241). There was no statistical difference between the two groups, with a crude incidence rate of 5.4% (72/1,345) and 2.9% (7/241), and an event rate of 2.33 (in 30,842 person-month), 1.26 (in 5,570 person-month) respectively (HR, 0.54; 95% CI, 0.25 to 1.17; p = 0.120, as reference of the 1st generation CCBs) (Table 2, Fig. 1). The individual event of death and symptomatic arrhythmia were not statistically different between the two groups (Table 2, Fig. 1).

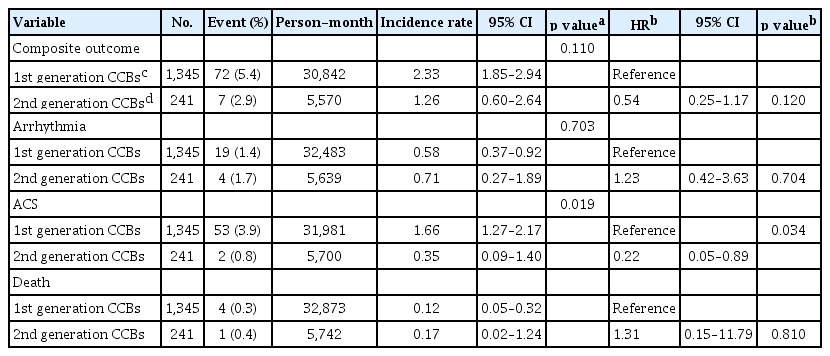

Table 2.

Incidence rates and HRs for primary composite outcomes and each outcome between 1st and 2nd generation CCBs

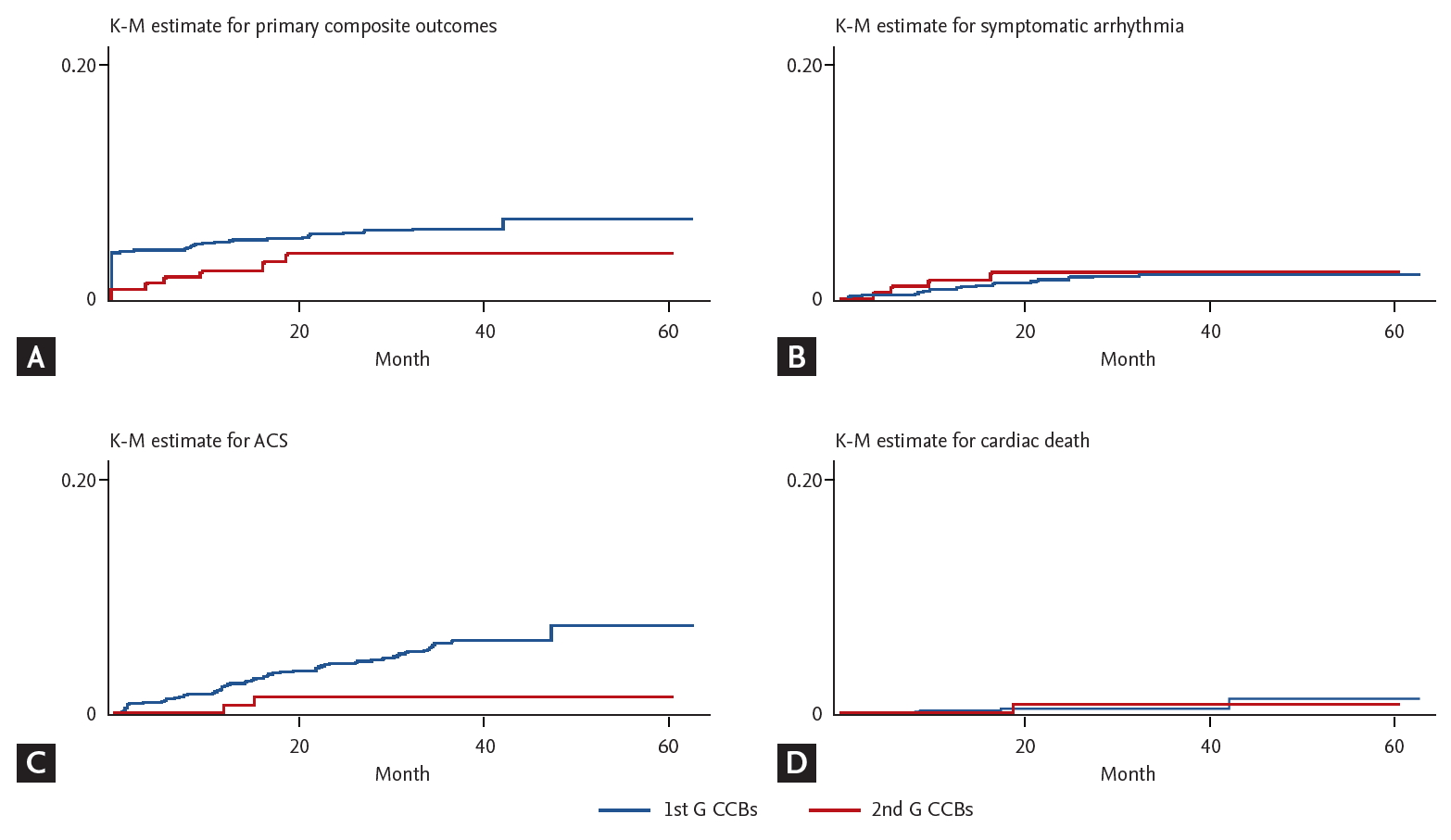

Figure 1.

Primary and individual outcomes according to calcium channel blockers (CCBs) usage with Kaplan-Meier (K-M) survival curve. There was no significant difference in the incidence rate of primary outcomes between the 1st and 2nd generation CCB groups. (A) K-M estimate for primary outcomes, (B) K-M estimate for symptomatic arrhythmia, (C) K-M estimate for acute coronary syndrome, (D) K-M estimate for cardiac death.

However, with regard to ACS occurrence, the 2nd generation CCB group showed a significantly lower event rate than the 1st generation CCB group, with an event rate of 0.8% vs. 3.9% (2nd vs. 1st generation respectively), and with a person-time incidence rate of 1.66 (31,981 person-month) vs. 0.35 (5,700 person-month) (HR, 0.22; 95% CI, 0.05 to 0.89; p = 0.034) (Table 2, Fig. 1).

Nonetheless, by multivariate cox regression analysis, the use of the 2nd generation CCBs was not an independent risk factor for the primary outcome (Table 3). In the subgroup analysis, there was no difference between the 1st and 2nd generation CCBs in the primary outcome occurrence (Table 4).

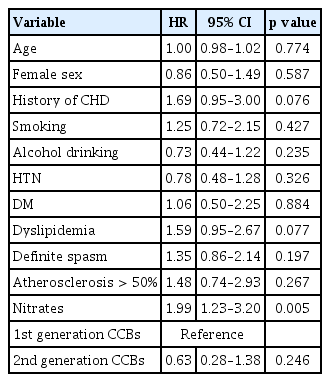

Table 3.

HR for the primary composite outcome by Cox regression including CCBs generation

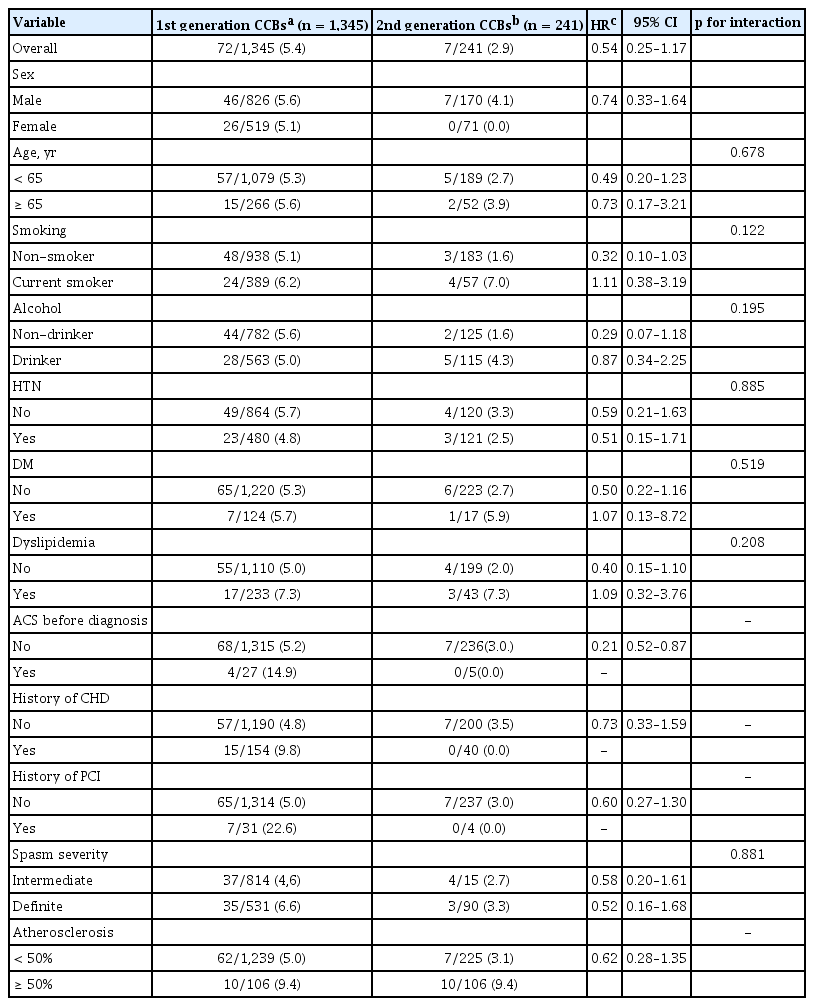

Table 4.

Subgroup analysis and interaction between 1st and 2nd generation CCBs

We also compared four different types of CCBs (Supplementary Tables 1 and 2). The primary outcome was not different among four CCBs groups (Supplementary Tables 1 and 2) in crude event rate and person-month incidence rate. By a Cox proportional hazard regression analysis, the individual groups of CCBs had similar efficacy as compared with the diltiazem group as a reference in the primary outcome and the primary outcome plus re-admission/emergency room visit (Supplementary Tables 3 and 4).

Angina symptom relief

Patients treated with benidipine had significantly better controlled angina symptoms as measured by the frequency of attack symptoms (grade I: near-daily attacks; II: ≥ 4 attacks/month; III: ≥ 1 but < 4 attacks/month; and IV: < 1 attack/month), as compared to patients treated with diltiazem after 1 year (adjusted odds ratio [OR], 0.43; 95% CI, 0.23 to 0.79; p = 0.006) both unadjusted and adjusted by ordered logistic regression analysis (Table 5). The beneficial effect persisted at the 2nd and 3rd year ([OR, 0.20; 95% CI, 0.10 to 0.41; p < 0.0001 at 2nd year] and [OR, 0.19; 95% CI, 0.10 to 0.37; p < 0.0001 at 3rd year]) (Table 5).

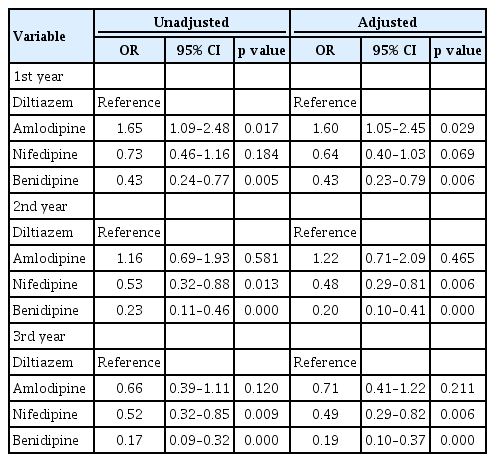

Table 5.

Angina symptoms grade according to calcium channel blocker by ordered logistic regression

DISCUSSION

The VA-Korea is a large scale nation-wide multicenter registry including patients with a suspicion of VA who were receiving an EG provocation test with a long-term follow-up. In our comparison of the different types of CCBs, there was no difference in the composite clinical outcomes of death from any cause, ACS, and new onset symptomatic arrhythmia in two category of classification of CCBs: comparison of the 1st and 2nd generation CCBs and comparison of each of the four CCBs in each group.

However, we found a better clinical outcome in the users of 2nd generation of CCBs in regard to ACS occurrence despite of failing attainment of statistical significance in cox multivariate regression analysis. We also demonstrated the beneficial effect of benidipine in controlling the angina symptoms as compared with diltiazem which is the most widely used CCB in Korea.

CCBs inhibit the inflow of Ca²⁺ into the smooth muscle cell through voltage-sensitive Ca² channels, thereby causing vasodilation. Thus, CCBs are generally recommended to control angina and vasospasm. Other multicenter cohort studies performed in South Korea have included 2,032 patients, the CCBs were prescribed to 98.1% of patients and diltiazem was the most prescribed drug followed by dihydropyridine drug [6]. Diltiazem is the mostly used drug for VA patients in Japan [14,17]. Our study results also support those prior studies with 90.2% prescription rate of CCBs in VA patients and diltiazem was the most widely used CCB (79.0%) followed by amlodipine, nifedipine, and benidipine in VA patients.

We found that 2nd generation CCBs were the preferred choice for ACS prevention in VA patients. It is well-known that coronary artery vasospasm is one of the most important etiologies for ACS [18,19]. If VA patients present with ACS, the prognosis may worsen. One retrospective study in Korea showed that 15% of VA patients presented with ACS, and they had increased risk of allcause death, adverse cardiovascular events, recurrent MI, and re-hospitalization [8]. Therefore, the prevention of ACS in VA patients is of the utmost importance. In our analysis, the 2nd generation CCBs group showed less event of ACS occurrence than those in 1st generation CCBs. The benefit can be explained by the longer sustainability and vessel specific property of the 2nd generation CCBs [20,21]. Short acting CCBs are known to increase in sympathetic activity assessed by norepinephrine levels [20], which is associated poor outcome in patients with ischemic heart disease. Thus, we recommend the 2nd generation CCBs to prevent future ACS as well as to control angina symptom for VA patients instead of 1st generation CCBs which is mostly used in Korea.

As for the control of angina attack in patients with VA, we demonstrated the benefit of 2nd generation CCBs, especially benidipine in better control of angina. Benidipine do not show positive results in clinical outcomes. There have been studies showing positive clinical efficacy let alone the better control of angina symptom with benidipine in VA patients [17,22,23]. Representative one is meta-analysis pooled with 1,997 patients which showed that benidipine had significantly better prognostic effect as compared with amlodipine, nifedipine or diltiazem [14]. Notably, the benefit of benidipine was apparent later on 6th year which might suggest that long-term vasculoprotective effects were mainly involved instead of anti-vasospastic efficacy of benidipine. Thus, the follow-up duration of our study of 3 years, was not long enough to show the clinical benefit of this drug in our study patients as well as the small sample size of benidipine group. This medication has been reported to be more selective for coronary artery smooth muscle cells and to improve vascular endothelial function assessed by flow-mediated dilation in VA patients as compared with other CCBs [21,24]. These actions could, in part, explain the better control of angina symptoms in our study [25].

When we compared the CCBs in patients with definite spasm, 2nd generation CCBs, benidipine consistently showed better control of angina. Nifedipine also demonstrated better control of angina symptoms in definite spasm. We agree that these results could also be due to chance as there were smaller number of patients receiving benidipine and nifedipine (24 to 66 persons) than those receiving diltiazem. Although nifedipine showed the signal of poor composite clinical outcome, the p value and CI was marginal (HR, 2.30; 95% CI, 1.00 to 5.26; p = 0.049). Therefore, this results could be attributed to small sample size and simply by chance. In addition, Cox-multivariate regression analysis showed that use of nifedipine was not an independent risk for poor clinical outcome in this definite spasm patients (Supplementary Table 7). Thus, we think that nifedipine could be used safely and might be fit for severe definite spasm patient for angina control. Taking into account all the things together, we would like to recommend practitioners to prescribe 2nd generation CCBs for Korean VA patients, especially those with definite spasm for preventing ACS and controlling angina.

VA patients. In our study, the use of nitrates was only a significant risk factor of primary outcome in patients with VA. Although nitrates are frequently used to control angina symptoms, there are several studies that have demonstrated a worse prognosis of patients with VA after treatment with nitrates [26]. Potential mechanisms include the rapid development of tolerance and generation of reactive oxygen species, leading to endothelial dysfunction, sympathetic nerve activation, and increased sensitivity to vasoconstrictors. Therefore, further studies are needed before we can conclude that nitrate therapy is harmful and discontinue this drug for VA patients.

Our study has limitations. Firstly, only a small number of patients received benidipine; 65 patients. Although we demonstrated that benidipine treatment is an independent risk factor by multiple regression analysis, there might be a bias contributed by the small size of the group. Secondly, due to the small sample size of the benidipine and nifedipine groups, we did not perform a propensity matching analysis to balance baseline characteristics among groups. This difference may have influenced the results in spite of other compensatory statistical methodology of multiple regression analysis and Cox-regression analysis. Thirdly, we do not have the data on drug dose and drug adherence. Furthermore, we do not present the data on changes in the drug treatment like dose increase, or adding or changing to another drug during follow-up, which could affect the outcome and symptom management. Fourth, it was a non-randomized observational study and results are prone to be influenced by inherent limitations. Thus, prospective randomized study is needed to confirm the present results. Fifth, we do not present the data on angina symptom severity and duration, which could be another marker for estimating angina control with CCBs. We did not include these at the initial stage of study designing. Sixth, we do not present the data on alcohol habit, which may affect the outcome and angina symptoms in VA patients.

To conclude, CCBs are widely used in Korean VA patients, of which diltiazem is the most commonly prescribed. In our comparison between the 1st and 2nd generation CCBs, we did not find any difference in the composite primary outcome of total death, ACS, and symptomatic arrhythmia at the 3-year follow-up. However, the use of the 2nd generation CCBs—amlodipine and benidipine, was associated with a lower rate of ACS, and the use of benidipine was associated with less angina symptom at 3-year follow-up in VA patients.
