Korean J Intern Med > Volume 19(1); 2004 > Article
Rhee, Kwon, Kim, Song, Yoon, Lee, and Kim: Do Acute Changes in Heart Rate by Isoproterenol Affect Aortic Stiffness in Patients with Hypertension?

Abstract

Background:

Increased aortic stiffness is a independent risk factor of cardiovascular disease in patients with hypertension. Acute changes of the heart rate (HR) have been reported not to affect the aortic stiffness in pacing. However, it is unknown whether acute changes in HR caused by sympathomimetics can affect the aortic stiffness in patients with hypertension. We investigated the effect of acute changes in HR produced by isoproterenol on the aortic stiffness in 17 hypertensive patientss (mean age: 59±9 years).

Methods :

All vasoactive drugs were discontinued at least 3 days before the study. The carotid-to-femoral pulse wave velocity (PWV) was measured by the foot-to-foot method. The pulse waves were recorded at the baseline and at every increase of HR by 5 to 10 bpm with a gradual increase of the dose of isoproterenol. The blood pressures and HR were measured simultaneously. For the analysis, HR, PWV, compliance (C), and compliance index (Ci) were converted as percent changes (Δ) from the baseline values. Percent changes of the parameters of the aortic stiffness, i.e., ΔPWV, ΔC, and ΔCi, were grouped by every 10% increase in ΔHR.

Results :

There was no significant difference among groups in ΔPWV, ΔC and ΔCi (p>0.05 for each of the group). The regression analysis showed no significant correlation of ΔHR with ΔPWV and ΔC (r=0.18, 0.13 respectively, p>0.05 for each). ΔCi had a poor correlation with ΔHR (r=0.22, p<0.05). However, only 4.6% of ΔCi could be referred to ΔHR (r2=0.046).

Conclusion :

Aortic stiffness was not affected by acute changes in HR produced by isoproterenol which suggests that it is not necessary to consider acute changes in HR when measuring aortic PWV.

INTRODUCTION

An increased aortic stiffness is a reliable factor of prognosis for all-cause and cardiovascular mortality in patients with hypertension13). The measurement of the aortic stiffness can serve as an important method of identification of hypertensive patients at an increased risk of the cardiovascular disease1, 2). The aortic stiffness can be assessed non invasively by measurement of the pulse wave velocity (PWV) a simple, reproducible, and widely used method3, 4). Measurement of PWV is also routinely/ or often used to evaluate the effect of antihypertensive drugs on the aortic stiffness.
Acute changes of blood pressure (BP) affect the measurement of PWV. The level of BP positively correlates with PWV. Therefore, the compliance index (Ci), which is BP independent index of arterial distensibility, was proposed, to evaluate the aortic stiffness5). However, the data on the influence of acute changes in the heart rate (HR) on the aortic PWV is limited. Recent studies6,7) show that an increase of HR in the atrial pacing does not alter the aortic PWV. These studies included patients without hypertension6,7) and were conducted without discontinuation of vasoactive drugs7). It has not yet been clearly elucidated whether PWVs measured at different HRs can be used in the follow-up of the aortic stiffness in hypertensive patients.
Therefore, we evaluated the influence of acute changes in HR effected by isoproterenol on the aortic stiffness, as assessed by PWV measurements, in hypertensive patients.

MATERIALS AND METHODS

1. Subjects

This study included patients with essential hypertension, in whom the diagnostic coronary angiography was planned for evaluation of the chest pain. The exclusion criteria were: cardiac arrhythmia, unstable angina, myocardial infarction, valvular heart disease, cerebrovascular disease, congestive heart failure, and carotid arterial disease. Subjects with HR above 80 bpm at rest or increased by 15% or more at the baseline, i.e., just before the measurement of PWV, compared with that at rest, were also excluded from the study.

2. Study design

Vasoactive drugs, except aspirin, were discontinued at least 3 days before the coronary angiography. All patients were given 5 mg of oral diazepam before the coronary angiography. Informed consent was obtained from all the patients before the procedure.
PWV was measured after the coronary angiography. After recording of the pulse waves, HR and BP at the baseline, isoproterenol was infused intravenously at the starting dose of 2 mg/min. The dose of isoproterenol was increased by 2 mg/min at every 5 minutes intervals. During the whole procedure, HR and BP were continuously monitored. The pulse waves were recorded at every 5 to 10 bpm increase in HR. Recording of the pulse waves was stopped when HR increased by more than 60% in respect of the baseline HR. HR and BP were measured simultaneously with the pulse wave recording. HR was determined from the 3-lead orthogonal ECG. BP was measured by the fluid-filled manometer system through the sidearm of the 6F arterial sheath of the right femoral artery.

3. Measurement of aortic PWV

The aortic pulse waves were recorded simultaneously with TY-307 Fukuda pressure sensitive transducers (Fukuda, Tokyo, Japan) at two sites: the left common carotid artery at the base of the neck and the left femoral artery at the groin level. The pulse waves were recorded at a high speed (200 mm/sec) in the paper chart recorder (MCS 5500, Fukuda, Tokyo, Japan).
PWV was determined by the foot-to-foot method8,9). The foot of the pulse wave was defined as the point of intersection of the horizontal line that passed through the point of the minimum pressure at the foot and the line that was drawn from the center of the sharp systolic upstroke of the next pulse wave. The foot-to-foot time delay (TD) was measured between the feet of the simultaneously recorded waves of the left carotid artery and the left femoral artery, and calculated as the mean of at least 10 consecutive waves. The distance covered by the pulse waves was measured over the surface of the body with a tape measure. The distance from the suprasternal notch to the left carotid site (D2) was subtracted from the total distance between the left carotid site and the femoral site (D1). PWV was calculated as the ratio between the distance covered by the pulse and the foot-to-foot TD and expressed in meters per second.
PWV(m/sec)=(D1D2)/TD
The aortic compliance (C) was calculated per 10 mmHg of the pulse pressure, as previously reported10) : C = 66.7/PWV2.
The compliance index (Ci), the expression of the aortic compliance, which is independent from BP changes, was also calculated as previously reported5,10) : Ci = C (DP 10−3)/LN(Ps/Pd), where Ps and Pd are systolic and diastolic BP, and DP is the pulse pressure.

4. Analysis

HR, PWV, C and Ci were expressed as percent changes (Δ) from the baseline values. HRb, PWVb, Cb and Cib indicate the baseline HR, PWV, C and Ci.
Percentchangesoftheheartrate(ΔHR)=100×(HRHRb)/HRbPercentchangesofPWV(ΔPWV)=100×(PWVPWVb)/PWVbPercentchangesofcompliance(ΔC)=100×(CCb)/CbPercentchangesofcomplianceindex(ΔCi)=100×(CiCib)/Cib
ΔHR were grouped by every 10% increase (group 1 : 0% ΔHR < 10%; group 2 : 10% ΔHR < 20%; group 3 : 20% ΔHR < 30%; group 4 : 30% ΔHR < 40%; group 5 : 40% ΔHR< 50%; group 6 : 50% ΔHR < 60%). Comparisons among groups were made using one-way ANOVA and independent-samples t-test. To evaluate the correlations of ΔHR with ΔPWV, ΔC, and ΔCi, a linear regression analysis was performed. Statistical analysis was performed using SPSS for Windows Version 10.0.7. (SPSS inc). Unless it is stated otherwise, the results are presented as mean±SEM, and a p<0.05 was considered as statistically significant.

RESULTS

We studied 17 patients, 3 men and 14 women (age 59±9 years [mean SD]). At the baseline, systolic and diastolic BP were 172±2 mmHg and 92±1 mmHg, HR was 76±9 bpm. (mean±SD). Figure 1 shows the influence of acute changes in HR on the aortic stiffness when ΔPWV, ΔC, and ΔCi were analyzed between grouped DHR. Although DPWV showed a tendency to increase with an increase in DHR, there was no significant difference among the groups (p>0.05 by ANOVA and independent-samples t-test). ΔC and ΔCi also showed a tendency to decrease without significant difference among the groups (p>0.05 by ANOVA and t-test).
Figure 2 shows the results of the linear regression analysis, which evaluated the correlation between ΔHR and ΔPWV, ΔC, and ΔCi. There was also an increasing tendency of ΔPWV (r=0.18, r2=0.033), and a decreasing tendency of ΔC (r=0.13, r2=0.017) with an increase in ΔHR. However, ΔPWV and ΔC showed no significant correlation with ΔHR (p>0.05). Although ΔCi showed a very weak negative correlation with ΔHR, r2 was 0.0046, indicating that only 4.6% of the changes in the compliance index could be referred to changes in the heart rate.

DISCUSSION

The arterial compliance plays an important role in cardiovascular diseases. An increased aortic stiffness has a positive correlation with the presumed atherosclerotic load11) and high HR12). The aortic stiffness is a strong independent predictor of all-cause and cardiovascular mortality in patients with essential hypertension13) as well as hemodialysed patients with the end-stage renal disease13). Thus, the measurement of the aortic stiffness could serve as an important tool in identifying patients at an increased risk of the cardiovascular disease.
The aortic stiffness can be assessed by non-invasive methods14). Pulse pressure measurement, applanation tonometry, measurement of intimal medial thickness or arterial distension by the echo-tracking signal, and PWV measurement are routinely used methods. The aortic PWV measurement can be done easily, without expensive equipment and is now widely used to evaluate the aortic stiffness in hypertensive patients15). Recently, a large-scale intervention trial demonstrated feasibility of the aortic PWV measurement as the endpoint in hypertensive patients16).
Two non-invasive methods are generally used to measure PWV-the Doppler method and the pressure transducer method. The latter method is the most commonly used. PWV is derived from the measurement of the pulse transit time and the distance covered by the pulses between the two recording sites. The pulse transit time is determined from the time delay between the feet of the two corresponding waves, which are usually recorded from the carotid artery and the femoral artery simultaneously. The distance covered by the pulses is obtained from the superficial measurement of the distance between the two transducers. PWV is calculated by dividing the distance by the pulse transit time.
The measurement of PWV is influenced by BP level5). An elevation of BP can increase the aortic PWV. Therefore, Ci which is independent from the blood pressure is proposed and routinely used what?5) However, only few studies have evaluated the influence of acute changes in HR on the measurement of the aortic PWV.
High HR and sympathetic tone have an arterial stiffening effect12, 17, 18). Mangoni et al.18) report that in rats, an acute increase in HR due to pacing was accompanied by a marked reduction in the distensibility of the common carotid artery, whereas the distensibility of the femoral artery was much less consistently affected. In the carotid artery, the stiffening effects of tachycardia were exerted independently/or irrespective of/from the sympathetic modulation, and in the femoral artery, removal of sympathetic influence unmasked the stiffening effects of tachycardia. Albaladejo et al.7) evaluated, in patients with the pacemaker monitoring, the influence of acute changes in HR on PWV. HR was increased by pacing, and was grouped into low, middle, and high HR. Although a higher aortic pulse wave velocity was noted in the high HR group, it was not statistically significant. Wilkinson et al.6) also reported that in patients undergoing electrophysiologic testing or cardiac catheterization, the incremental atrial pacing over the physiologic range of HR did not influence the aortic stiffness. However, these studies included patients without hypertension6, 7) and the evaluation was made without discontinuation of vasoactive drugs7). It is not simple to apply the previous results6,7) directly to the aortic PWV measurement in hypertensive patients. Hypertensive patients have arterial properties different from those of normotensive subjects. Antihypertensive medication, such as calcium antagnoists and angiotensin, converting enzyme inhibitors can also affect the aortic stiffness. Therefore, the influence of acute changes in HR on PWV measurement in hypertensive patients might be different from that in normotensive patients.
The present study has some different aspects in the study design compared with the previous studies6, 7). Only subjects with hypertension were included into the study. To minimize the influence of vasoactive drugs on the PWV measurement, all vasoactive drugs were discontinued at least 3 day before the evaluation. PWV was also measured continuously at every 5 to 10 bpm increase in HR.
In the present study, although the aortic stiffness showed a tendency to with an increase in HR, it was not statistically significant. There was no significant correlation of acute changes in HR with changes in PWV and the compliance. Changes of Ci showed a very weak negative relationship with acute changes of HR. However, r2 of DCi to changes of HR was 0.0046, which indicates that only 4.6% of changes of Ci could be referred to the changes in HR. The predictive power was very low.
The findings of the present study indicate that the influence of acute changes in HR on the aortic stiffness is negligible, which is consistent with the previous studies6,7). Thus, when we evaluate the aortic stiffness with PWV, to identify hypertensive patients at an increased risk of the cardiovascular disease or to assess the effect of antihypertensive drugs on the aortic stiffness, it seems not to be necessary to consider acute changes of HR.
The present study has limitations. First, the number of the study subjects was small. To apply these results to all hypertensive patients, further studies with a large number of patients are needed. Second, we used isoproterenol to increase HR. Isoproterenol dilates peripheral vessels. There may be a potential influence of dilatation of peripheral arteries at the PWV measurements. There are no data of the influence of dilatation of peripheral arteries on aortic PWV. However, the findings of the present study are consistent with the previous studies6, 7), which showed no association between acute changes of HR caused by atrial pacing and aortic PWV in normotensive subjects. In addition, the present study is the first attempt to evaluate the effect of isoproterenol on aortic PWV. Third, we measured only PWV and calculated C and Ci from PWV, to evaluate the aortic stiffness. It is unknown whether other methods of evaluation of the aortic stiffness will give the same results.
In summary, acute changes in HR do not significantly affect the aortic stiffness in hypertensive patients, measured by PWV. These results suggest that it is not necessary to consider the influence of acute changes in HR, when we evaluate the aortic stiffness.

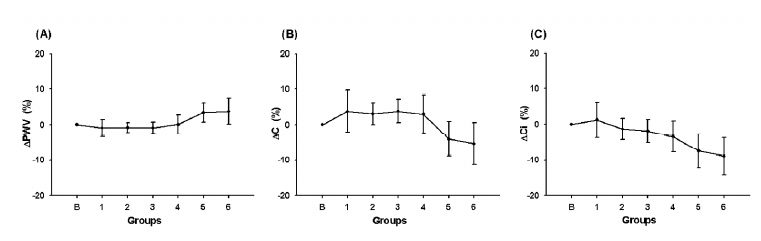

Figure 1.
Effects of acute changes of heart rate on aortic pulse wave velocity. Changes of heart rate (ΔHR) are grouped by every 10% increase of heart rate. Relationship between (A) ΔHR and % changes of aortic pulse wave velocity (ΔPWV), (B) ΔHR and % changes of aortic compliance (ΔC), (C) HR and % changes of aortic compliance index (ΔCi). Values represent means±SEM. By ANOVA and t-test, ΔPWV, ΔC and ΔCi showed no difference between groups (p>0.05 by ANOVA and unpaired t-test). B represents basal value.

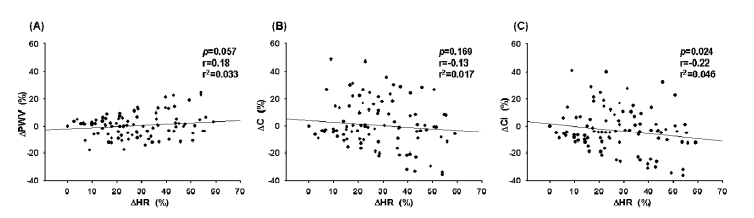

Figure 2.
Correlations between, (A) % changes of heart rate (ΔHR) and % changes of aortic pulse wave velocity (ΔPWV), (B) HR and % changes of aortic compliance (ΔC), and (C) HR and % changes of aortic compliance index (ΔCi). By linear regression analysis, PWV and ΔC do not significantly correlate with ΔHR. ΔCi very weakly correlates with HR. However, only 4.6% of ΔCi can be referred to ΔHR. Linear regression line is shown.

REFERENCES

1. Laurent S, Boutouyrie P, Asmar R, Gautier I, Laloux B, Guize L, Ducimetiere P, Benetos A. Aortic stiffness is an independent predictor of all-cause and cardiovascular mortality in hypertensive patients. Hypertension 37:1236–12412001.
crossref pmid
2. Boutouyrie P, Tropeano AI, Asmar R, Gautier I, Benetos A, Lacolley P, Laurent S. Aortic stiffness is an independent predictor of primary coronary events in hypertensive patients: a longitudinal study. Hypertension 39:10–152002.
crossref pmid
3. Amar J, Ruidavets JB, Chamontin B, Drouet L, Ferrieres J. Arterial stiffness and cardiovascular risk factors in a population-based study. J Hypertens 19:381–3872001.
crossref pmid
4. Asmar R, Benetos A, Topouchian J, Laurent P, Pannier B, Brisac AM, Target R, Levy BI. Assessment of arterial distensibility by automatic pulse wave velocity measurement: validation and clinical application studies. Hypertension 26:485–4901995.
crossref pmid
5. Lehmann ED, Gosling RG, Parker JR, de Silva T, Taylor MG. A blood pressure independent index of aortic distensibility. Br J Radiol 66:126–1311993.
crossref pmid
6. Wilkinson IB, Mohammad NH, Tyrrell S, Hall IR, Webb DJ, Paul VE, Levy T, Cockcroft JR. Heart rate dependency of pulse pressure amplification and arterial stiffness. Am J Hypertens 15:24–302002.
crossref pmid
7. Albaladejo P, Copie X, Boutouyrie P, Laloux B, Declere AD, Smulyan H, Benetos A. Heart rate, arterial stiffness, and wave reflections in paced patients. Hypertension 38:949–9522001.
crossref pmid
8. Chiu YC, Arand PW, Shroff SG, Feldman T, Carroll JD. Determination of pulse wave velocities with computerized algorithms. Am Heart J 121:1460–14701991.
crossref pmid
9. Megnien JL, Simon A, Denarie N, del-Pino M, Gariepy J, Segond P, Levenson J. Aortic stiffening does not predict coronary and extra coronary atherosclerosis in asymptomatic men at risk for cardiovascular disease. Am J Hypertens 11:293–3011998.
crossref pmid
10. Lehmann ED, Gosling RG, Fatemi-Langroudi B, Taylor MG. Non-invasive Doppler ultrasound technique for the in vivo assessment of aortic compliance. J Biomed Eng 14:250–2561992.
crossref pmid
11. Lehmann ED, Hopkins KD, Rawesh A, Joseph RC, Kongola K, Coppack SW, Gosling RG. Relation between number of cardiovascular risk factors/events and noninvasive Doppler ultrasound assessments of aortic compliance. Hypertension 32:565–5691998.
crossref pmid
12. Sa Cunha R, Pannier B, Benetos A, Siche JP, London GM, Mallion JM, Safar ME. Association between high heart rate and high arterial rigidity in normotensive and hypertensive subjects. J Hypertens 15:1423–14301997.
crossref pmid
13. Blacher J, Guerin AP, Pannier B, Marchais SJ, Safar ME, London GM. Impact of aortic stiffness on survival in end-stage renal disease. Circulation 99:2434–24391999.
crossref pmid
14. Asmar RG, Topouchian JA, Benetos A, Sayegh FA, Mourad JJ, Safar ME. Non-invasive evaluation of arterial abnormalities in hypertensive patients. J Hypertens Suppl 15:S99–S1071997.
crossref pmid
15. Rhee MY, Han SS, Lyu S, Lee MY, Kim YK, Yu SM. Short-term treatment with angiotensin II antagonist in essential hypertension: effects of losartan on left ventricular diastolic function, left ventricular mass, and aortic stiffness. Korean Circ J 30:1341–13492000.
crossref
16. Asmar R, Topouchian J, Pannier B, Benetos A, Safar M. Pulse wave velocity as endpoint in large-scale intervention trial. J Hypertens 19:813–8182001.
crossref pmid
17. Mircoli L, Mangoni AA, Giannattasio C, Mancia G, Ferrari AU. Heart rate-dependent stiffening of large arteries in intact and sympathectomized rats. Hypertension 34:598–6021999.
crossref pmid
18. Mangoni AA, Mircoli L, Giannattasio C, Ferrari AU, Mancia G. Heart rate-dependence of arterial distensibility in vivo. J Hypertens 14:897–9011996.
crossref pmid
